Function To strap the steel tube bundle with strapping belt automatically online .
The number of strap can be set as per customer’s requirement

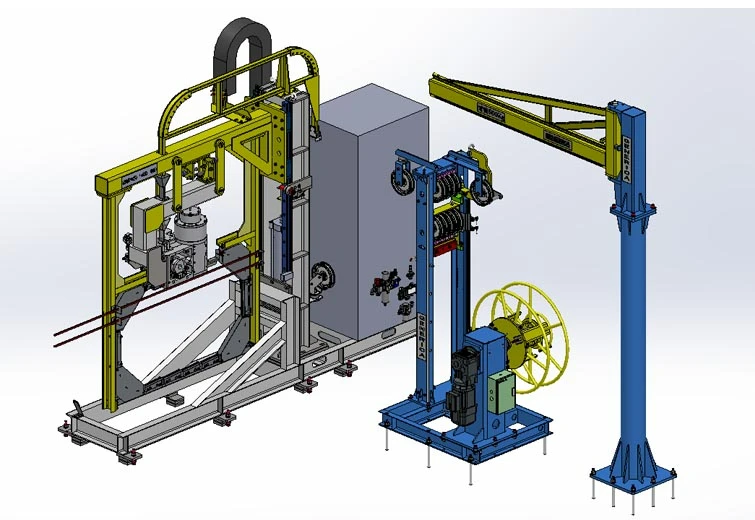

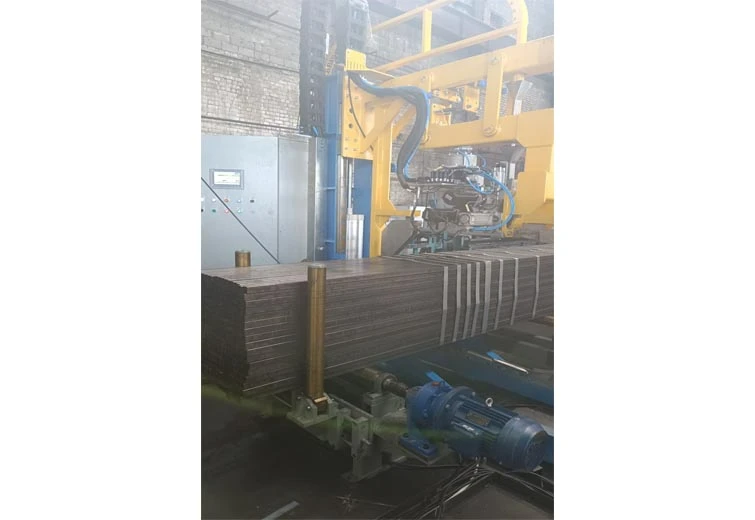

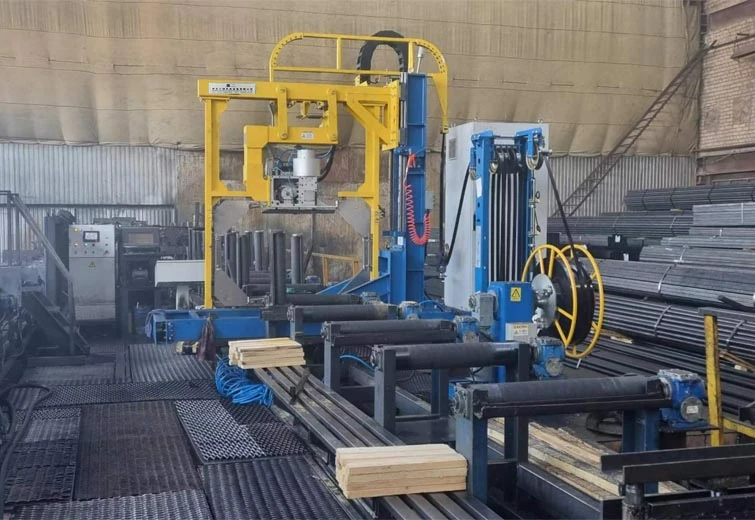

The automatic strapping machine is composed of
No.1: strapping head.
No.2 electric console system+console
No.3.main frame
No.4 lifting mechanism of strapping head
No.5.guide chute mechanism of strapping strip
No.6 pneumatic system
No.7 strapping strip dispenser
No.8 cantilever crane
The bought out component list
|
NO. |
Item name |
Brand |
|
1 |
Main low voltage electric elements |
SCHNEIDER/ABB |
|
2 |
Servo motor and its controller |
INVT |
|
3 |
PLC |
SIEMENS SIMATIC S7-1200 |
|
4 |
HMI |
SIEMENS KTP 900 Basic |
|
5 |
Sensor |
SICK/IFM/P+F/ELCO |
|
6 |
Terminal |
SCHNEIDER/PHOENIX |
|
7 |
Linear guide rail |
HIWIN \ PMI \ SLM \ PDF |
|
6 |
Reducer |
GUOMAO/DONLY |
|
7 |
Bearing |
HRB,ZWZ,LYC |
|
8 |
Pneumatic part |
AIRTAC/FESTO |
|
9 |
Ac driver |
SIEMENSE |
|
Strapping belt connection mode |
Buckle-free (notching) |
|
Strapping belt feeding speed |
Max. 3000 mm/sec（adjustable） |
|
Strapping belt Restraining（fastening）Speed |
Max. 3000 mm/sec（adjustable） |
|
Strapping belt Tension |
Max. ≈20,000 N（adjustable） |
|
Strapping belt Size |
31.75±0.13mm（width）×0.8±0.051mm |
|
Drive way |
Servo motor drive, 2-in-1 cylinder-punching buckle, cut strapping belt |
|
Strapping belt width |
31.75 ± 0.13 mm |
|
Strapping belt thickness |
0.8-1±0.051 mm |
|
Strapping belt Tensile strength |
YP = 880 or greater |
|
Material |
Cold rolled carbon steel |
|
Surface treatment |
Bluing or painted |

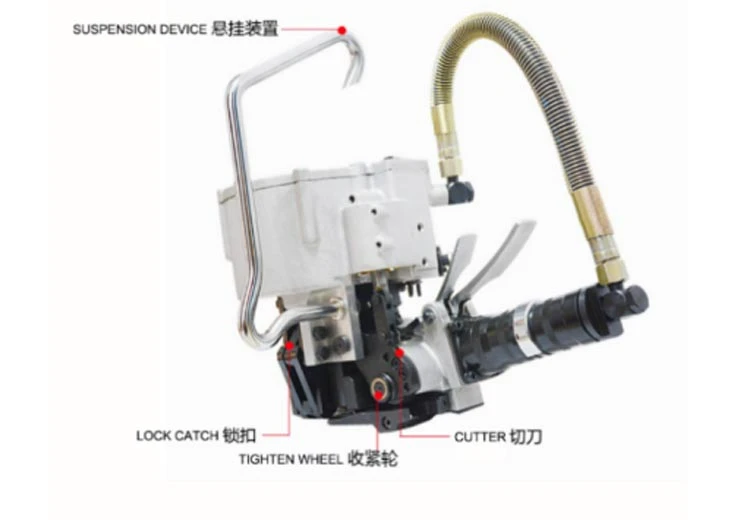

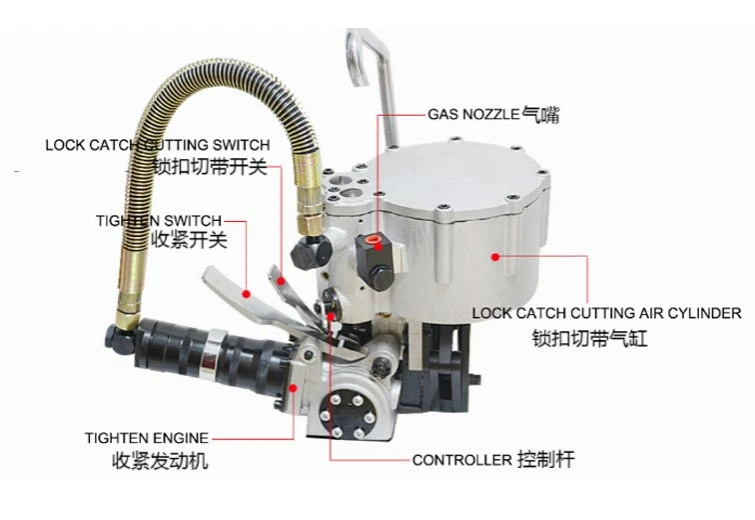

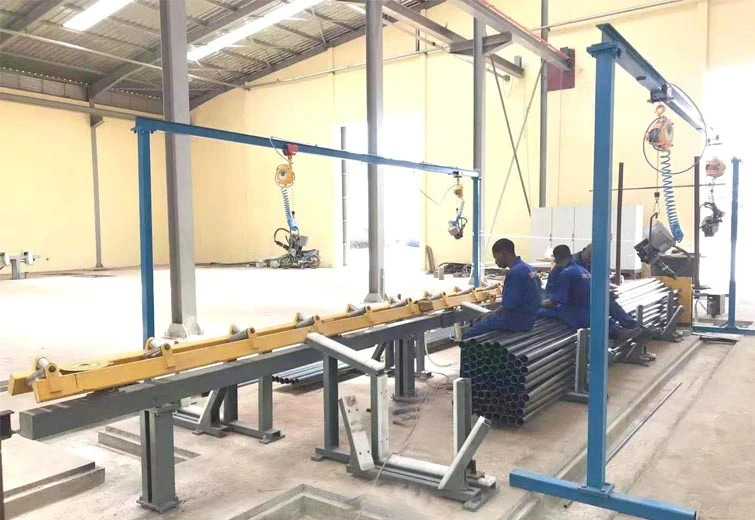

Strap the steel bundle by manual
|
Description |
l It is an integrated machine, including tensioning, locking and belt cutting functions l The pneumatic strapping machine is equipped with a balancer to stabilize the pneumatic strapping machine at a fixed height and can be lifted naturally to facilitate workers' operation. l Low labor intensity and high efficiency |
|
Specification |
The width of strapping strip：32mm，The thickness of strapping strip：0.5~1.2mm Tension ≥9.8KN/0.6Mpa Tension speed：5.3m/min Air pressure：0.35~0.6 Mpa |
