Solid state HF welder

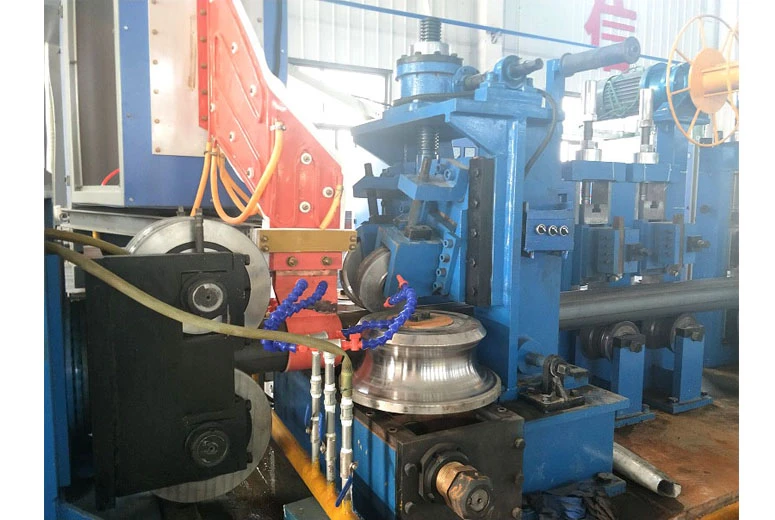

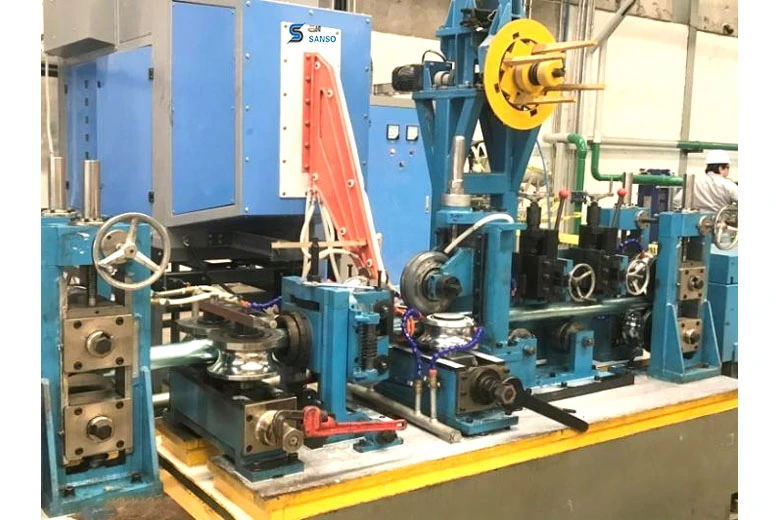

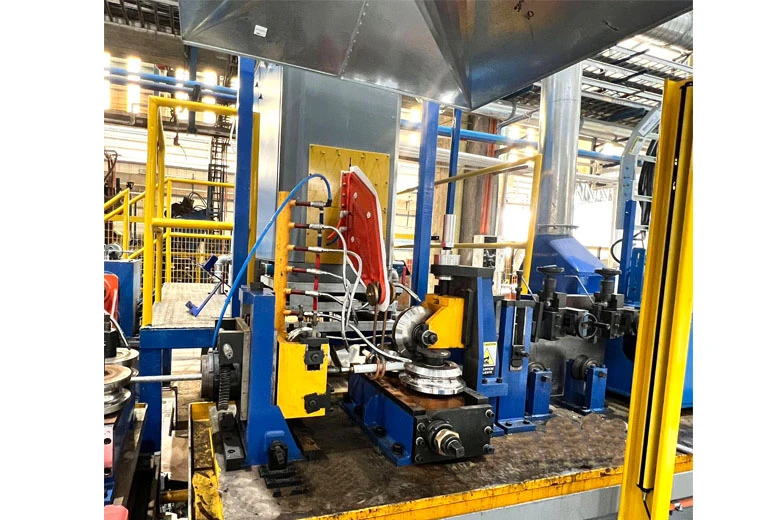

Solid state HF welder is most important equipment of welded tube mill. The welding seam quality is determined by the solid state HF welder .

SANSO can provide both MOSFET solid state HF welder and IGBT solid state welder.

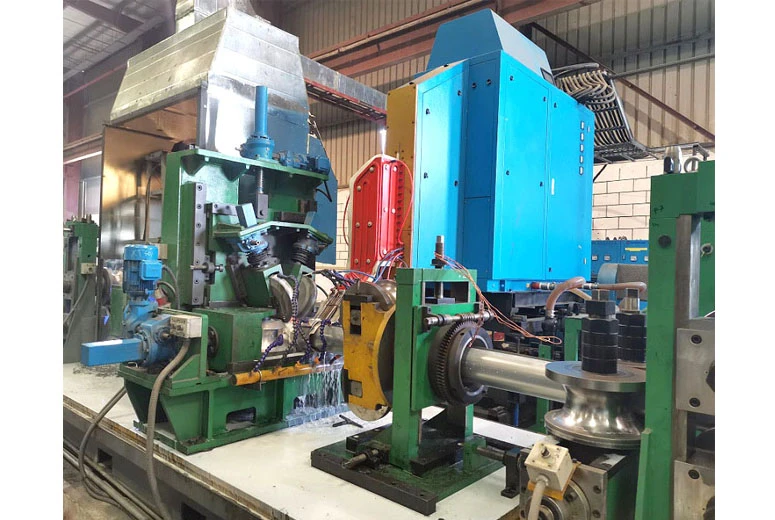

MOSFET solid state HF welder consisting of rectifier cabinet ,inverter cabinet ,water-water cooling device ,step down transformer,console and adjustable bracket

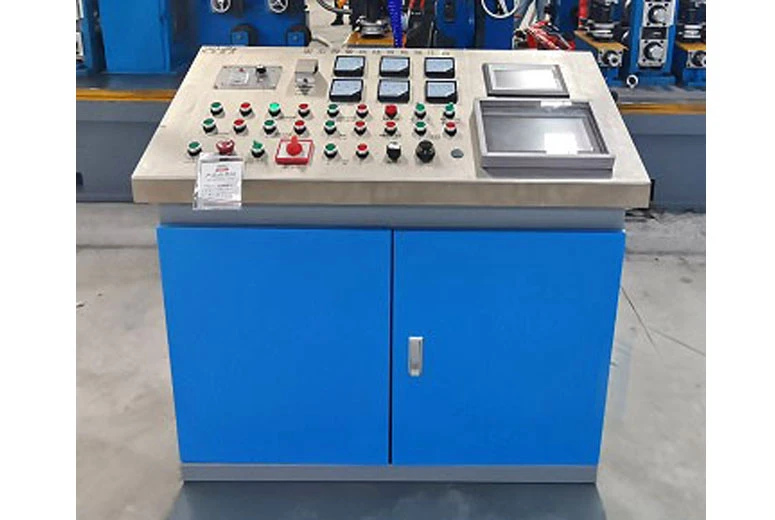

Console

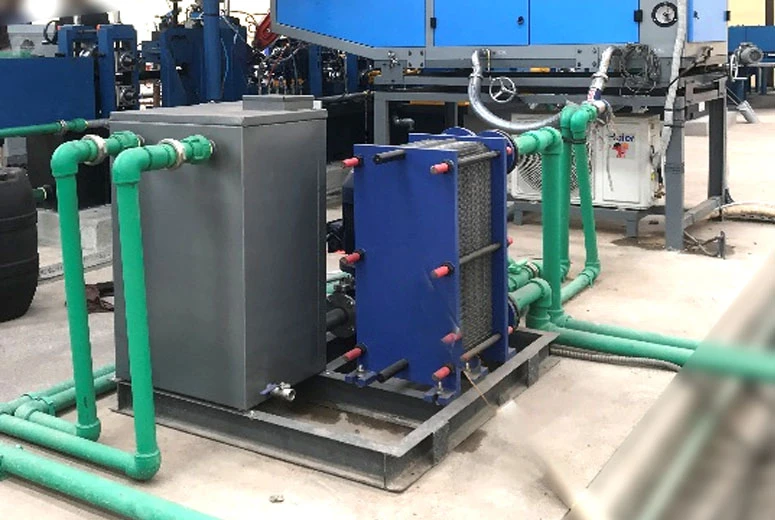

Water-water Cooling System

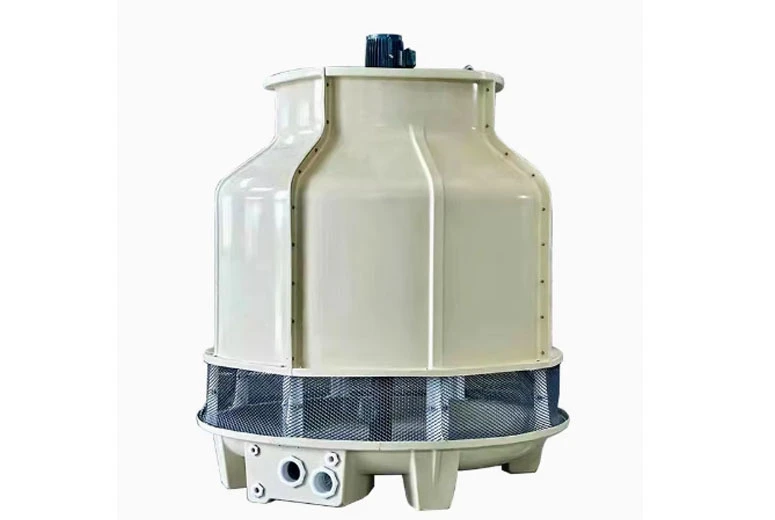

Cooling Tower

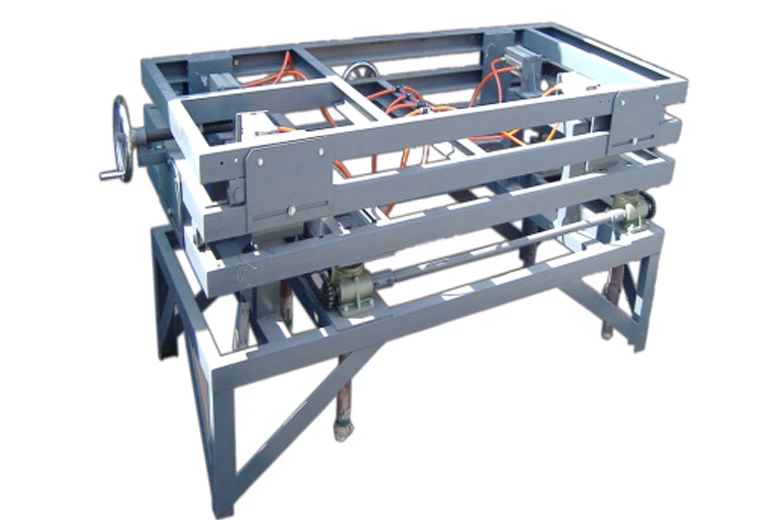

3D Adjustment Bracket

HF welder

Welder Model	Output Power	Rating Voltage	Rating Current	Design Frequency	Electricity Efficiency	Power Factor
GGP100-0.45-H	100KW	450V	250A	400~450kHz	≥90%	≥95%
GGP150-0.40-H	150KW	450V	375A	350~400kHz	≥90%	≥95%
GGP200-0.35-H	200KW	450V	500A	300~350kHz	≥90%	≥95%
GGP250-0.35-H	250KW	450V	625A	300~350kHz	≥90%	≥95%
GGP300-0.35-H	300KW	450V	750A	300~350kHz	≥90%	≥95%
GGP400-0.30-H	400KW	450V	1000A	200~300kHz	≥90%	≥95%
GGP500-0.30-H	500KW	450V	1250A	200~300kHz	≥90%	≥95%
GGP600-0.30-H	600KW	450V	1500A	200~300kHz	≥90%	≥95%
GGP700-0.25-H	700KW	450V	1750A	150~250kHz	≥90%	≥95%

The advantage

HIGHER EFFICIENCY

Better efficiency as compared to Vacuum tube Welder

The efficiency of a solid state welder is greater than 85%

EASY FAULT DIAGNOSIS

Because the HMI shows the Because the HMI shows the fault of HF welder , like the fault of 3#board ,over-temperature, fault of water pressure,the opening and closing of the cabinet’s door,the over-current , the fault of negative bridge mos and positive bridge mos. The fault can be found and solved soon, therefore, the downtime is reduced.

EASY TROUBLESHOOTING & MAINTENANCE

They are easier to maintain because of their drawer style design . Troubleshooting and maintenance are also greatly simplified. This results in lower down time and contributes to enhanced productivity.

THE COLD COMMISSIONING

The cold commissioning shall be fulfilled before shipment .So the perfect HF welder is assured.
