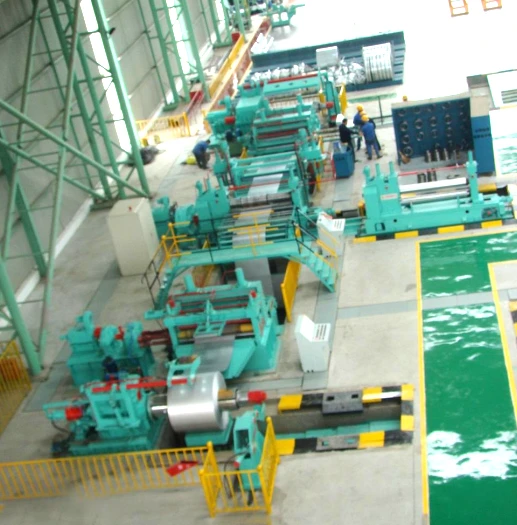

SANSO slitting line is most reliable, because we have long experience for fabricating the slitting line. The slitting line can cut the steel strip into required strip width and number of the strip the high accuracy ( the Slitting burr on the edge≤thicknessX3%mm). The material CR coils、HR coils、silicon steel、S.S steel、Color steel、AL、PPGl can be processed by the slitting line. The cut strips are are used for roll mill、HF tube mill、cold forming machines、punching &press machines,etc The cut strips can be processed by roll mill、HF tube mill、cold forming machines、punching &press machines. This way, the strip steel will be further processed

The advantage

Include “hands free” Uncoiler to Recoiler strip threading
Can be equipped with scrap Winders
Include a pit crossover/tail out system
Features “hands free” Recoiler threading (into the gripper slot)
Include a Flex-Grip Recoiler gripper (automatically adjusts to the crown in the material for a better grip)
Can be equipped with three types of Slitting Heads/Configurations

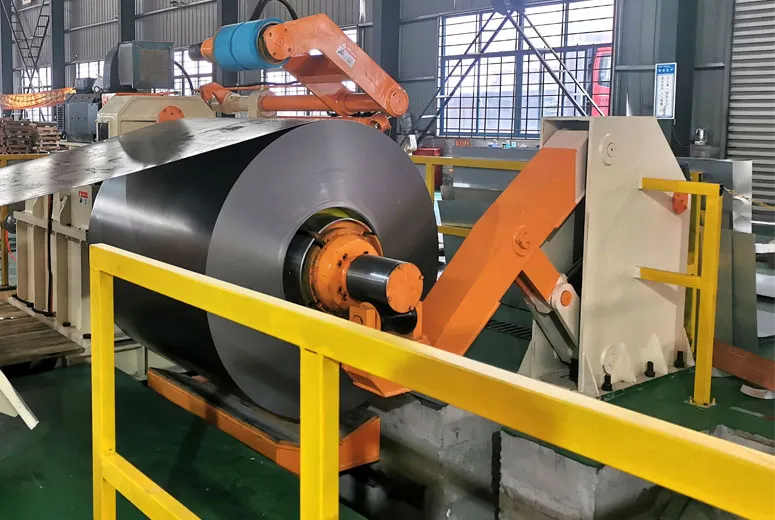

UNCOILER

Capacity is from 10ton to 25 Ton.the steel coil with diameter 508mm/610mm/760mm can be loaded,
Single mandrel type and double mandrel type are available at option.
The mandrel is expanded and collapsed by hydraulic,Traversing type is available at option,
The mandrel is driven automatically by DC motor or AC inverter motor.

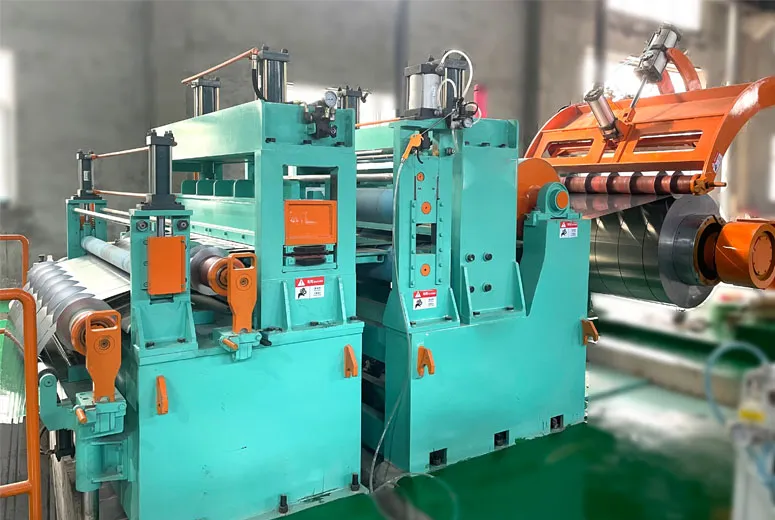

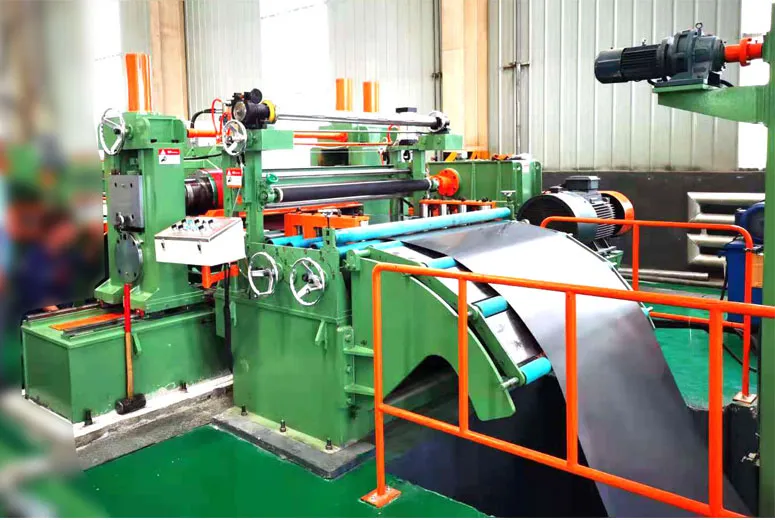

PINCHING ROLLER AND LEVELING MACHINE

It has pinching roller to pull steel sheet from uncoiler, the leveling roller flatten the steel sheet, the backup rollers are provided; It helps to avoid work roll deflection in shape correcting feature 4HI 19-roller and 6HI 15-roller leveling machine are available at option

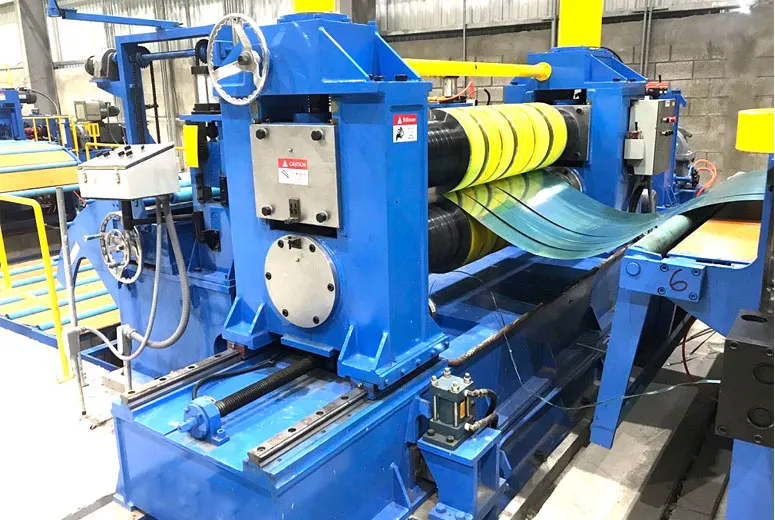

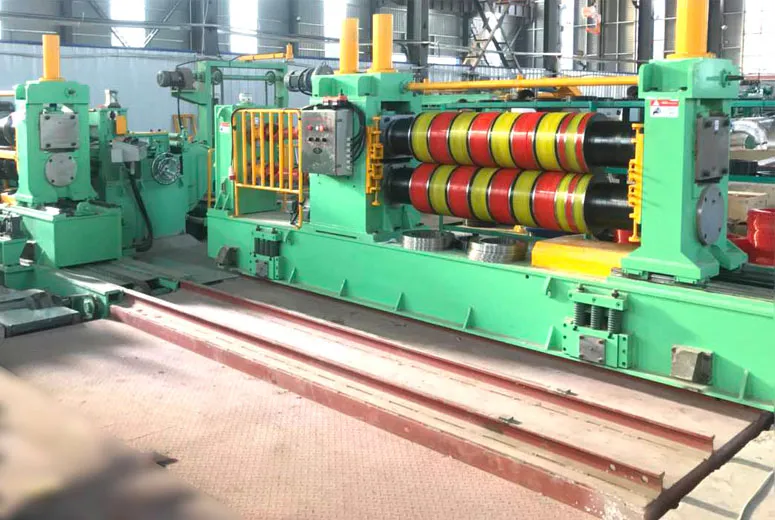

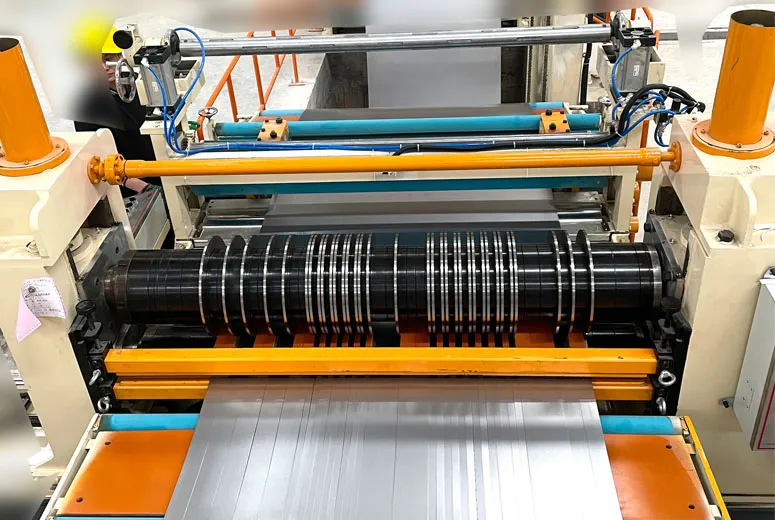

SIDE GUIDE DEVICE AND SLITTER

The side guide device press and guide the strip head for easy threading and travel of the strip further in to the line

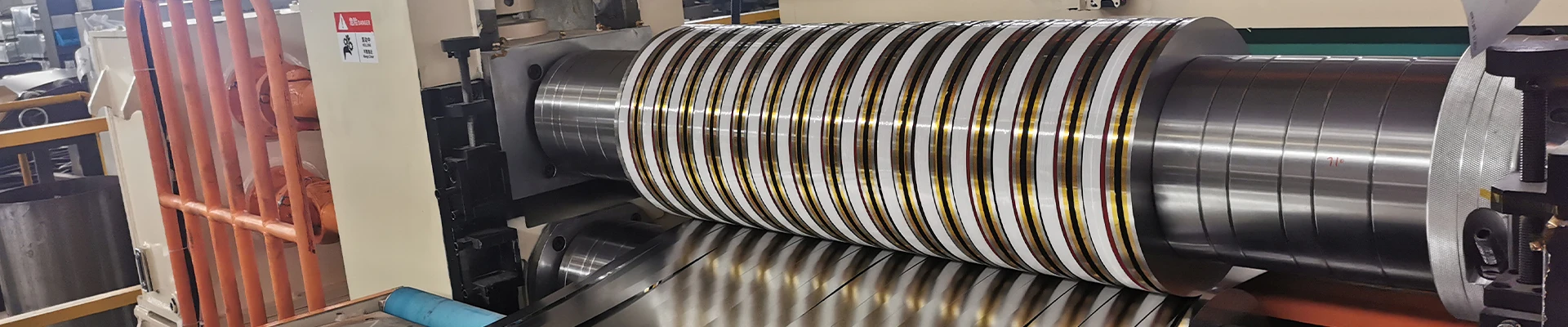

Slitter arbor is 205mm diameter to 480mm diameter and the bearing are specially designed for accuracy.

It assures the highest accuracy and permits minimum burs

With expansion arbor. The eccentric rotation of cutter knives can be eliminated,so that high accurate slitting is assured for highest quality.

Side guide device slitter

Side guide device slitter

Interchangeable slitter head

Try-transfer system for automatic quick change of slitter head is available at option. Thank to rigid and precise of slitter, The slitting line is ready to slit the material to highest accuracy strips without any adjustment after changing the slitter head

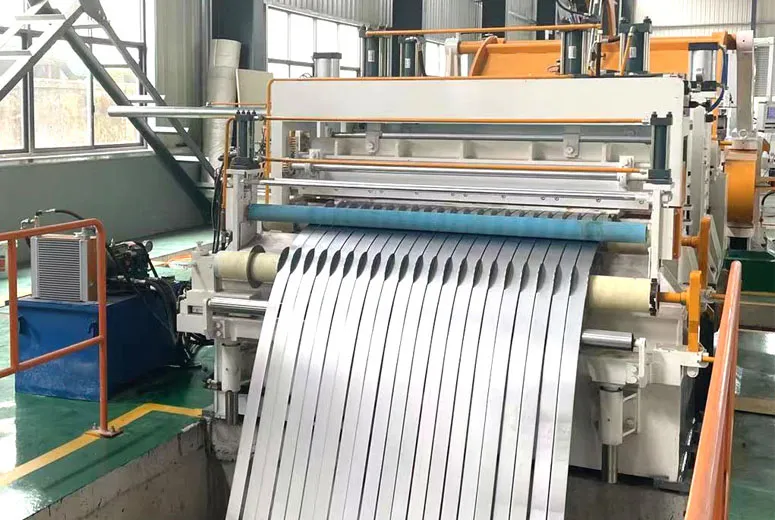

INLINE SEPARATOR AND TENSION DEVICE

2 type tension device can be provided, Once is conventional pad type,Another is roller type tension device .

Roller tension device is specially designed for the highest quality,Roller tension device can be used for re-coating material,stainless steel,copper and aluminum without any scratch .

Pad type tension device+ roller type tension devic Pad type tension device+ roller type tension device Inline separator

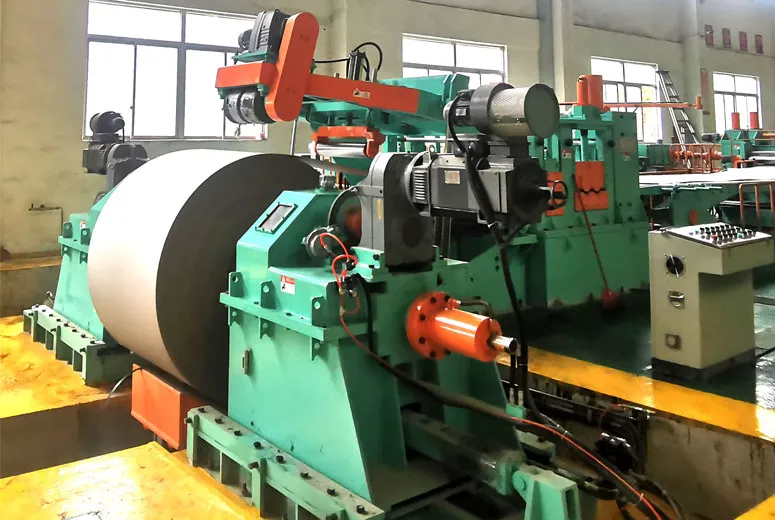

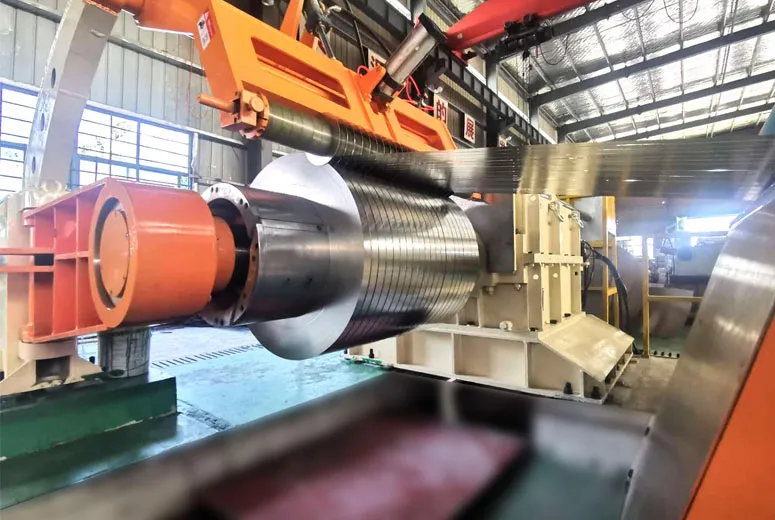

RECOILER

The recoilers are available for the capacity 500KG to 25Ton.

Diameter of mandrel is 250mm to 610mm.

The full circle recoiling mandrels are available to avoids the reel marks

And the recoiler can also equipped with over-arm separator and pusher

Light gauge slitting line

ITEM	THE TECHNICAL INFORMATION
Model	SL(0.15-1.5)X1300mm	SL(0.15-2.0)X1800mm	SL(0.3-3.0)X2000mm	SL(0.5-4.0)X1600mm
Material Thickness(mm)	0.15~1.5	0.15-2.0	0.3-3.0	0.5-4.0
Material Width Range(mm)	750&1300	1600&1800	1800&2000	200-1600
Number of slit Strips	2-20	2-20	2-15	2-15
The Precision of slit strip(mm)	±0.1	±0.1	±0.15	士0.15
Linear Speed(m/min）	10-200(250)	10-200(250)	10-150(200)	10-150(200)
Incoming Coil Weight(Ton)	10	15	20	25
Incoming Coil ID(mm)	Φ508&Φ610	Φ508 &Φ610	Φ508 &Φ610	Φ508 &Φ610
Incoming Coil OD(mm)	Φ508	Φ508	φ508	φ508
Arbor Shaft diameter(mm)	φ205	Φ220	φ240	φ240

Heavy gauge slitting line

ITEM	TECHNICAL INFORMATION
Model	SL(3--10)X2200mm	SL(3-12)X2200mm	SL(4-16)X2500mm	SL(6-20)X2500mm
Material Thickness(mm)	3-10mm	3-12mm,	4-16mm	6-20mm
Material Width Range(mm)	2000&2200mm	2000&2200mm	2000&2500mm	2200&2500mm
Number of slit Strips	5-18	5-20	1-5	1-4
Strip with(mm)	≥80mm	≥100mm	≥100mm	≥100mm
Linear Speed(m/min）	0-40	0-30	20	20
Incoming Coil Weight(Ton)	35	35	35	35
Arbor Shaft diameter(mm)	φ320	φ320	φ400	φ480

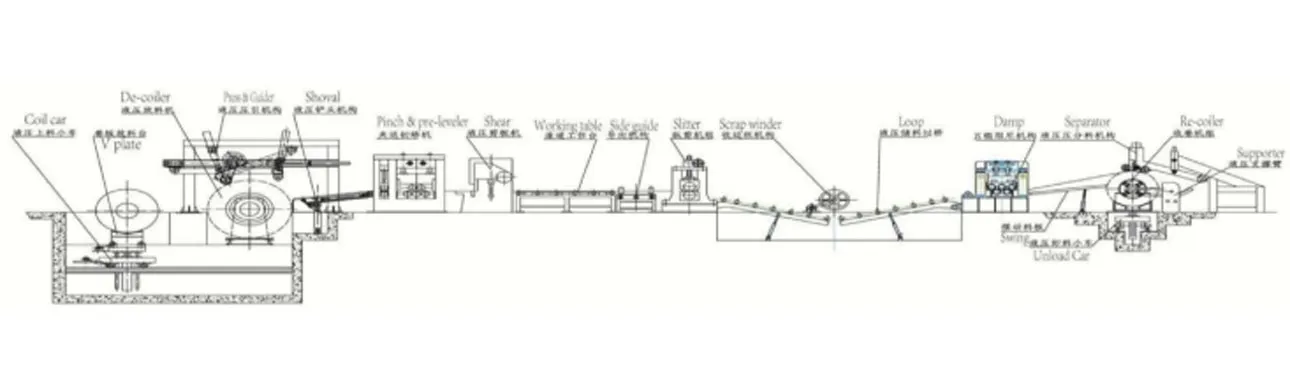

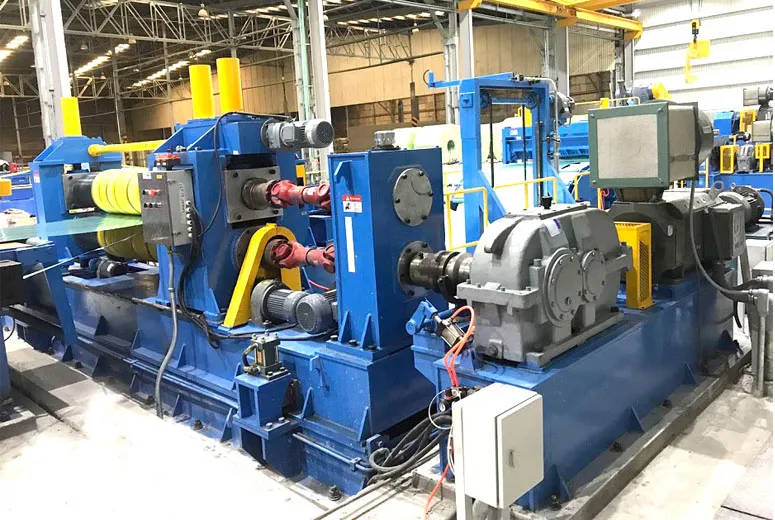

Slitting Line
