Function :It is used to pack automatically round tubes and square &rectangular profile. It possible to obtain either square,rectangular or hexagonal bundle .
The Feature
Fit to Round, Square and Rectangular pipes.Automatically,
lAll data set up at HMI panel.
lMulti packing style, such as quadrangle or hexagon style.
lQuick packing speed
lNo damage for pipe’s surface.
The composition of automatic fork arm Stacking Machine
Tube pickup unit
unit of tube alignment
Stacking unit
Aligning unit
The conveying roller table
Tube bundle storage unit
Water draining device
Electric control system
Function :It is used to pack automatically round tubes and square &rectangular profile. It possible to obtain either square,rectangular or hexagonal bundle .
The Feature
•Fit to Round, Square and Rectangular pipes.Automatically,
•All data set up at HMI panel.
•Multi packing style, such as quadrangle or hexagon style.
•Quick packing speed
•No damage for pipe’s surface.

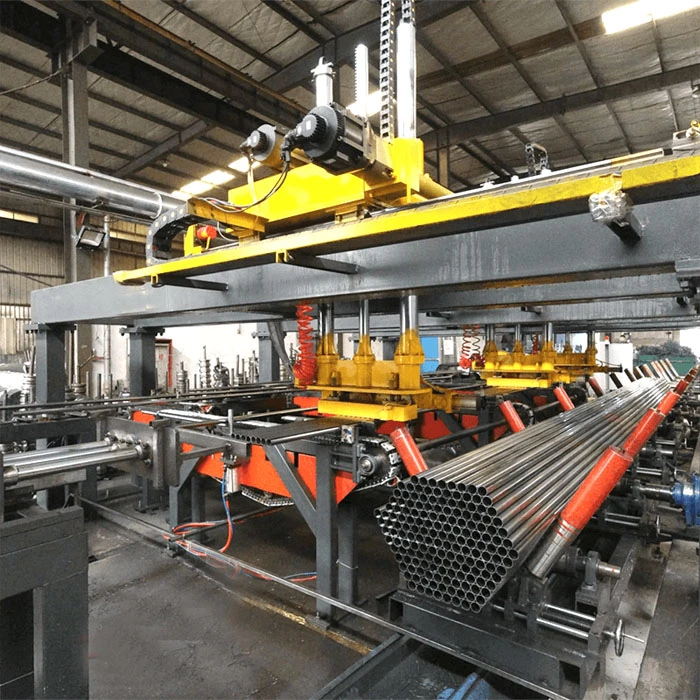

The composition of automatic electromagnet disc stacking machine
①Drawing chain
②he steel frame of electromagnetic sucking discs system
③Motorized alignment rollers
④System of pipe calculation
⑤System of pipe alignment
⑥Electromagnetic sucking discs system
⑦Stacking frame
⑧Carriage of tube bundle
⑨Conveying roller table for bundle delivering
⑩Motorized chain type bundle stocking area.
⑪Electrical control system
1.Φ20mm-Φ325mm round tube automatic packaging system
2.20x20mm-400x400mm square, rectangular tube automatic packaging system
3.Round tube/ square tube integrated multi-function automatic packaging system
