Cored wire production line
Cored wire production line

1SANSO machinery is the leader in roll formed Flux-Cored Welding Wire production line. The core equipment is the Roll Forming Mill, which transforms flat strip steel and flux powder into welding wire. SANSO machinery offers one standard machine the SS-10, which makes wire with diameter 13.5±0.5mm and thickness1.0mm

The Flux Feeder is closely allied to the Roll Form Mill - this accurately dispenses the powder fill into the center of the wire as it is being made on the Roll Forming Mill.

Cored wire production line
Cored wire production line
Cored wire production line
Cored wire production line
Cored wire production line
Cored wire production line
Cored wire production line
Description of composite cored wire production line

1.The definition of composite cored wire production line

A composite cored wire production line is an automated industrial production line specifically designed for manufacturing "composite cored wire."Composite cored wire itself is a core material widely used in steel making,metallurgy and foundry (casting) applications.
In simple terms, this production line uses a precision process to tightly wrap alloy powders and calcium wire of various functions within a steel strip, producing a ready-to-use "wire-like" additive.


2.The Process flow:

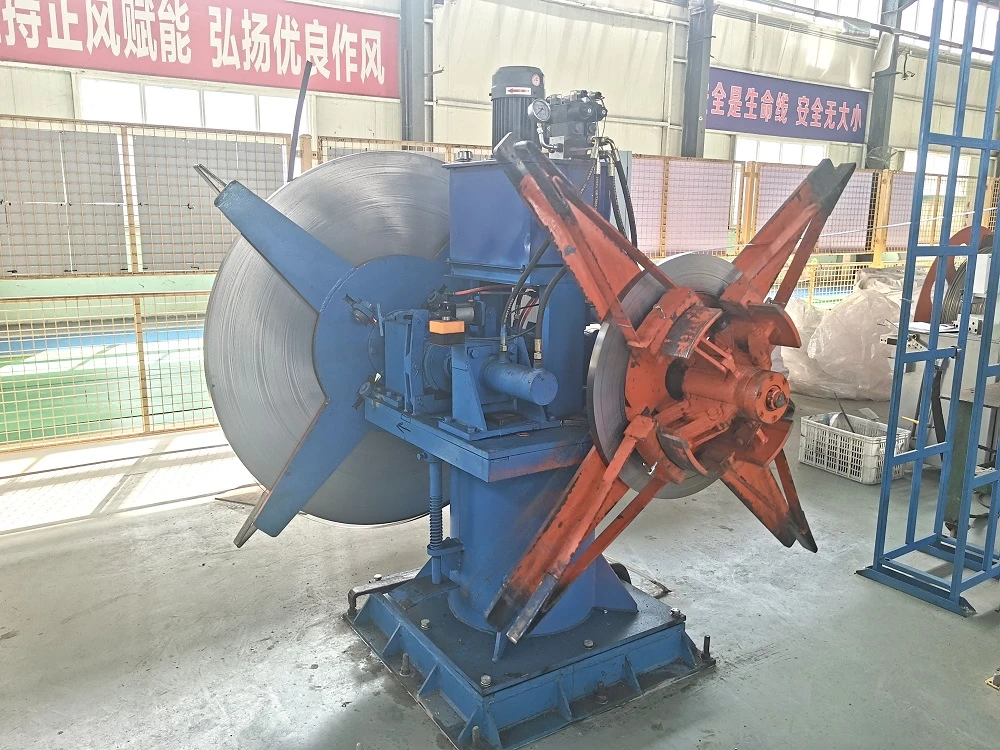

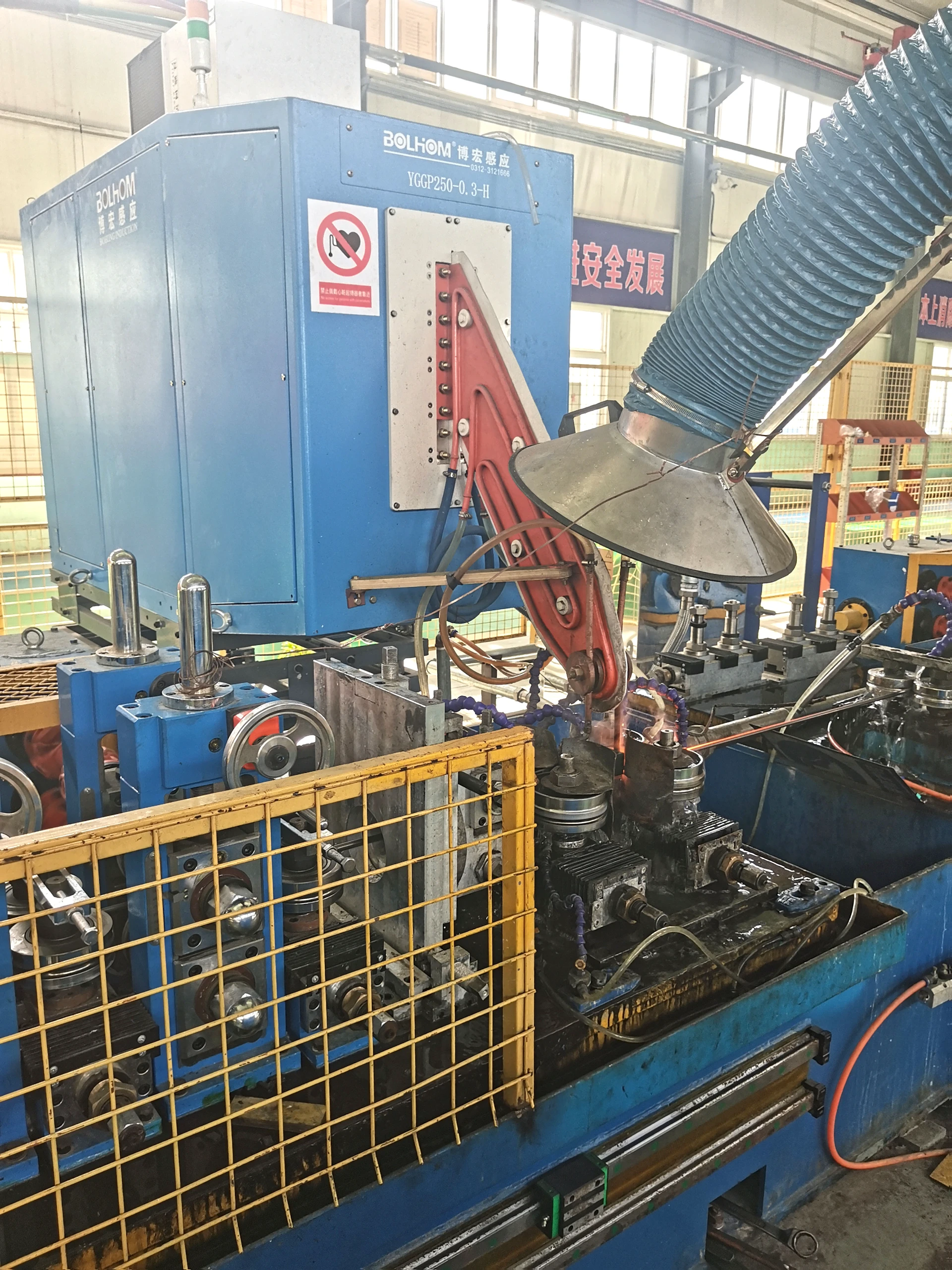

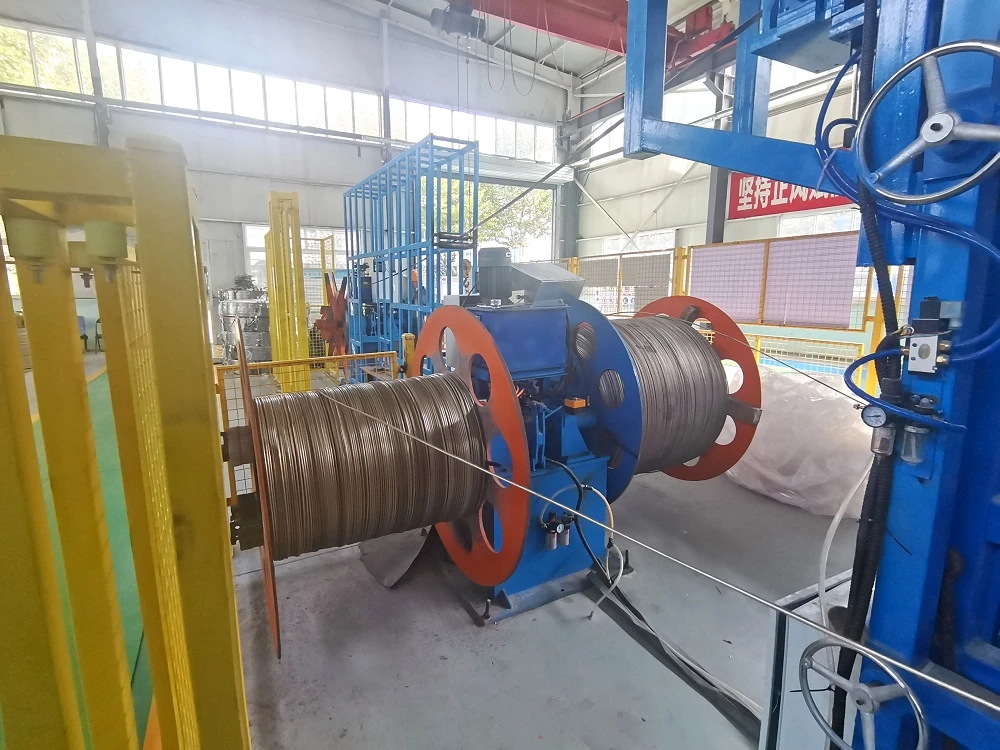

Steel coil uncoiler Cored wire production line Shear and end welder Cored wire production line calcium wire uncoiler Cored wire production line Cage accumulator Cored wire production line preforming machine Cored wire production line calcium wire feeding unit and hopper feeder Cored wire production line HF welder Cored wire production line calibration machine Cored wire production line Annealing equipment Cored wire production line Rewinde

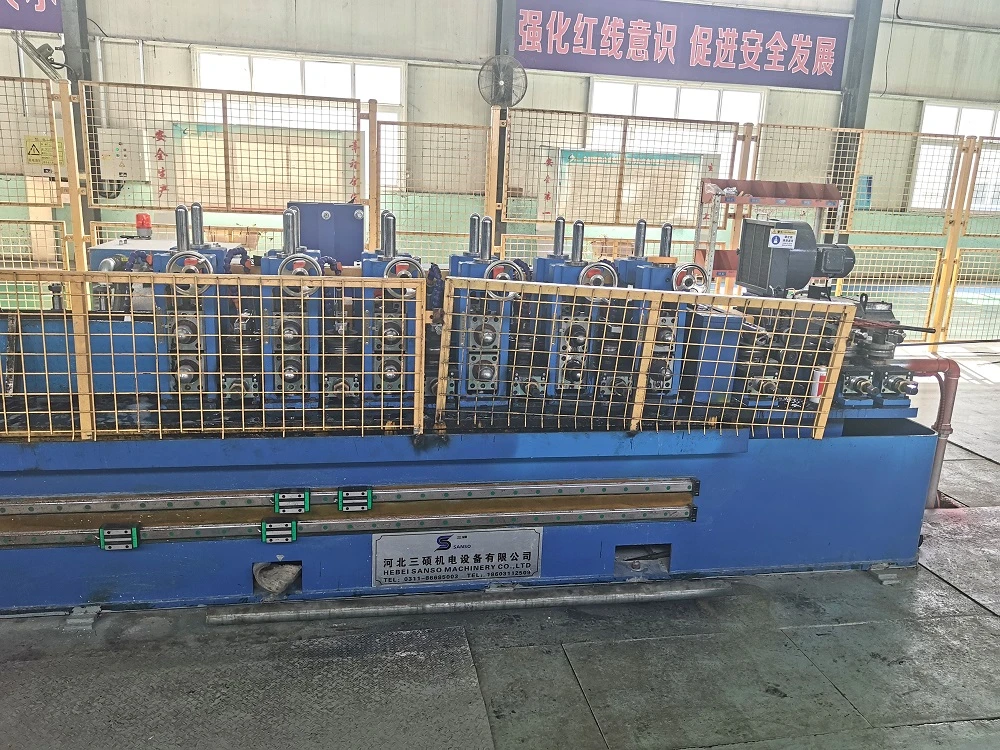

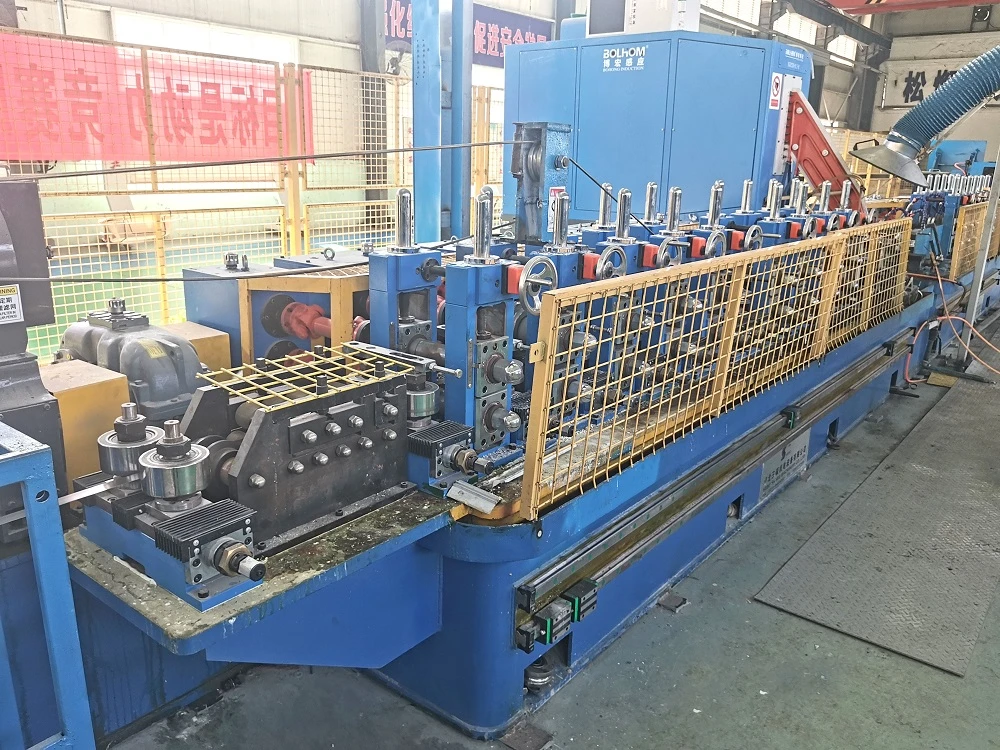

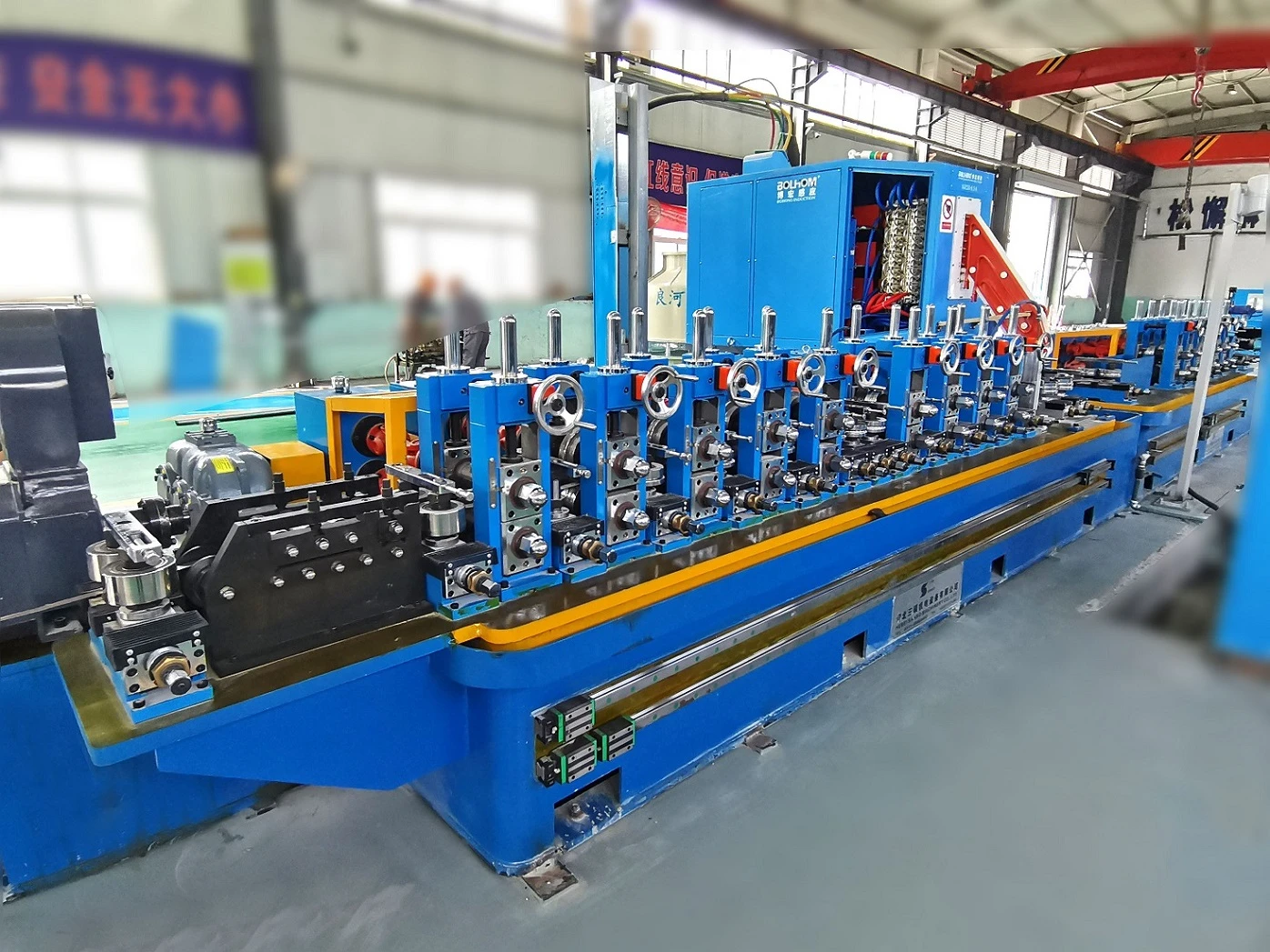

3 The picture of seamless solid&flux cored wire production line

4.The video of composite cored wire production line


5.The specification of final core wire

The 3 type cored wire can be manufactured by the composite cored wire production line

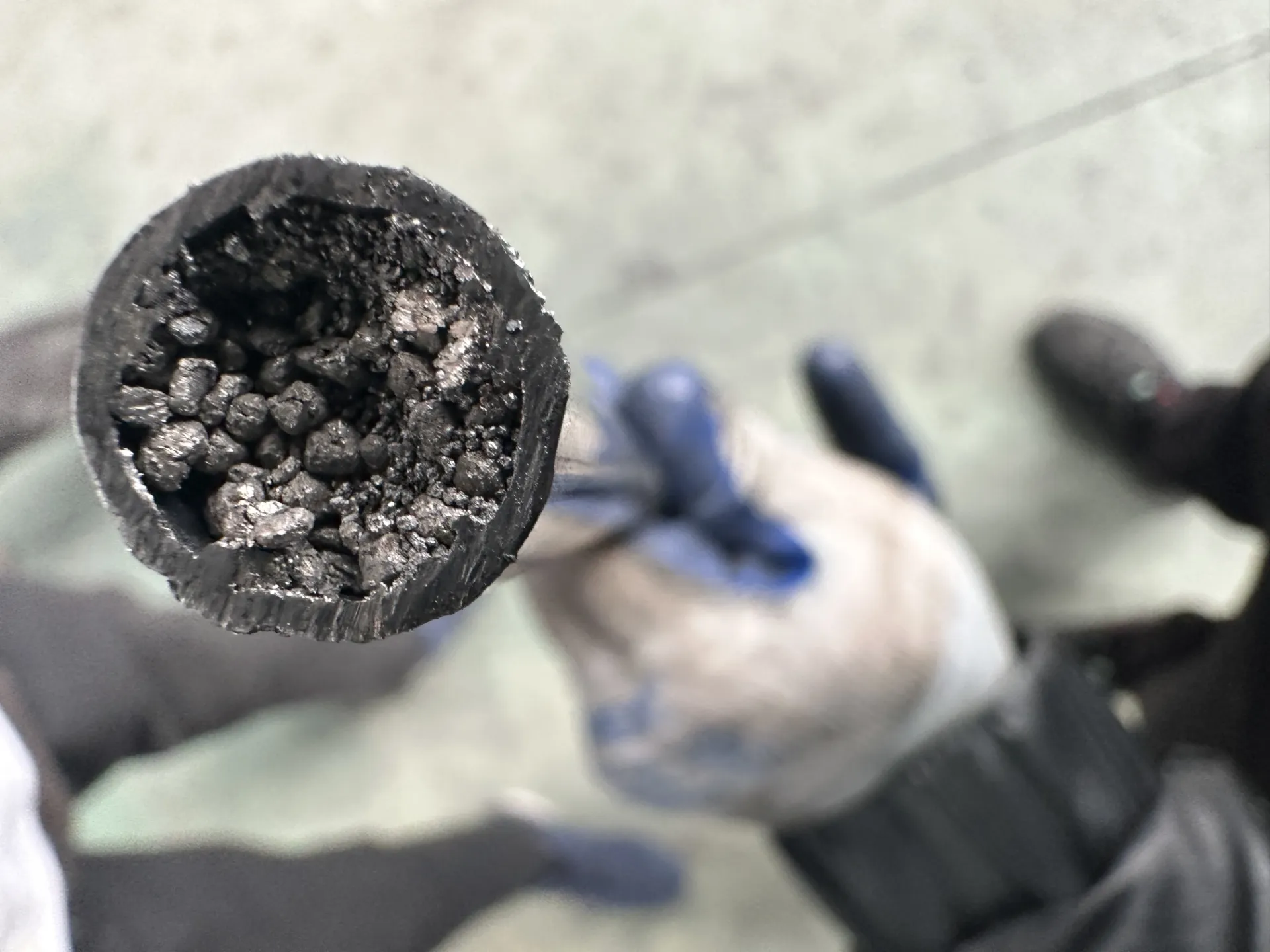

A:flux& solid cored wire(Composite cored wire)

1)The steel trip thickness :1.0mm

2)The flux&solid cored wire diameter 13mm

3)The filler : calcium wire and one or multiple powders

(CaSi Powder,Iron Powder and CaSiBa Powder)

4)Seal type : HF welding

5) Application:foundry industry ,steel making .

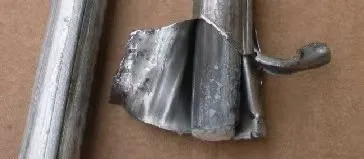

B:solid calcium cored wire

1)The steel trip thickness :1.0---1.5mm

2)The solid cored wire diameter :9.5mm,10.5mm

( dimension accuracy:±0.5mm)

3)The filler : Calcium wire

4)Seal type :HF welding

5) Application steel making .

C:flux cored wire

1)The steel trip thickness :1.0mm

2)The flux cored wire diameter :13--16mm

( the popular diameter:13mm,16mm)

3)The filler : one or multiple powders

(CaSi Powder,Iron Powder and CaSiBa Powder)

4)Seal type : HF welding

5) Application:foundry industry

Remark: the composite cored wire production line can manufacture composite cored wire ,solid calcium cored wire and flux cored wire, However ,considering the time of commissioning(downtime) and rejection cost during commissioning,the composite cored wire production line only manufacture composite cored wire.even one size of composite cored wire

6.Application of the final cored wire :

1)Composite cored wire and solid calcium cored wire are mainly used in steel making and metallurgy.

their function in steel making and Metallurgy is as below:

•Refining the molten steel: Deep deoxidation and desulfurization to remove harmful inclusions.
•Optimizing the microstructure: Modifying inclusion morphology to enhance the comprehensive mechanical properties of the steel.
•Ensuring smooth production: Solving the problem of tundish nozzle clogging during continuous casting to guarantee production continuity.
•Improving cost-effectiveness: Compared with traditional methods, it offers higher elemental yield, more stable treatment performance, and lower overall costs.
This technology is an indispensable key process for producing high-quality steel grades, such as pipeline steel, automotive steel, and other critical applications.

Cored wire production line

2)The flux cored wire is used in foundry industry
Flux-cored wire can be used in the casting process as a deoxidizer, alloying agent, and desulfurizer. When added to molten metal, it can improve the quality, mechanical properties, and corrosion resistance of castings.
Reduction of porosity and inclusions: The deoxidizing agents in the cored wire can effectively remove oxides from the molten metal, reducing the formation of gas pores and inclusions, thereby improving the density and internal quality of the castings.
Improvement of mechanical properties: By adding appropriate alloying elements, the microstructure and chemical composition of the castings can be adjusted, thereby improving their mechanical properties such as hardness, strength, toughness, and fatigue resistance.
Enhancement of corrosion resistance: The addition of alloying elements can improve the corrosion resistance of castings, giving them better oxidation resistance, acid/alkali resistance, or high-temperature resistance under specific environmental conditions.

Cored wire production line

Description of solid calcium cored wire production line

1 The definition of solid calcium cored wire production line
Solid calcium cored wire production line is a specialized metallurgical equipment. Its core function is to tightly wrap high-purity calcium metal wire with a steel strip, continuously producing solid calcium cored wire for steel making applications.


2.The Process flow:

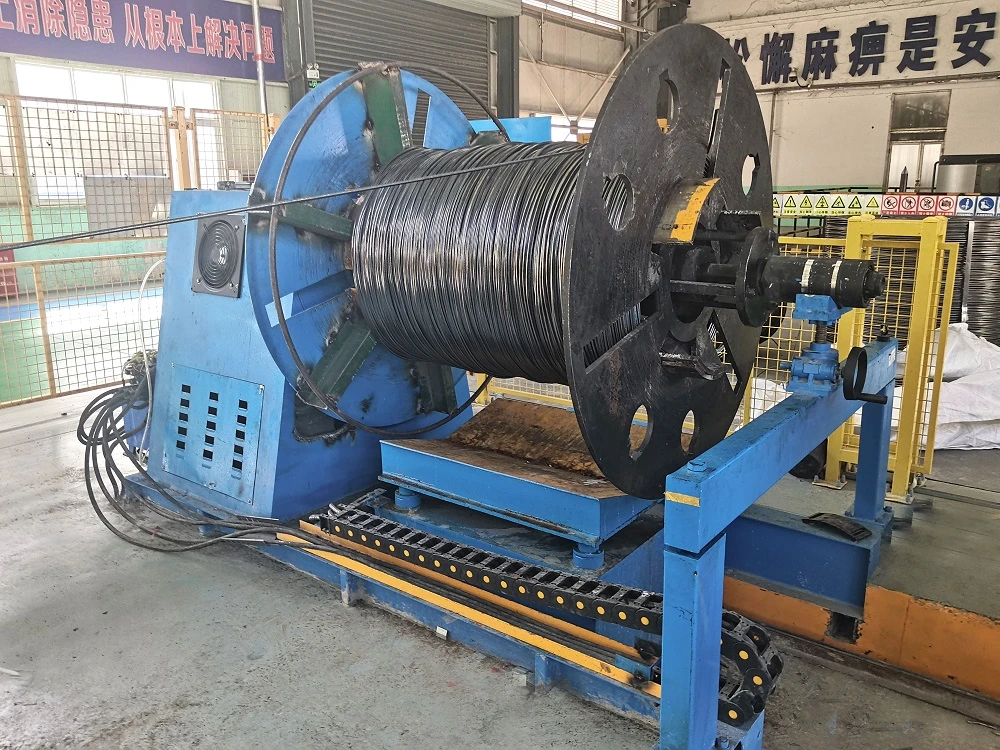

Steel coil uncoiler Cored wire production line Shear and end welder Cored wire production line calcium wire uncoiler Cored wire production line Cage accumulator Cored wire production line preforming machine Cored wire production line calcium wire feeding unit Cored wire production line HF welder Cored wire production line calibration machine Cored wire production line solid calcium cored wire laying unitCored wire production line winding Cored wire production lineunloading car

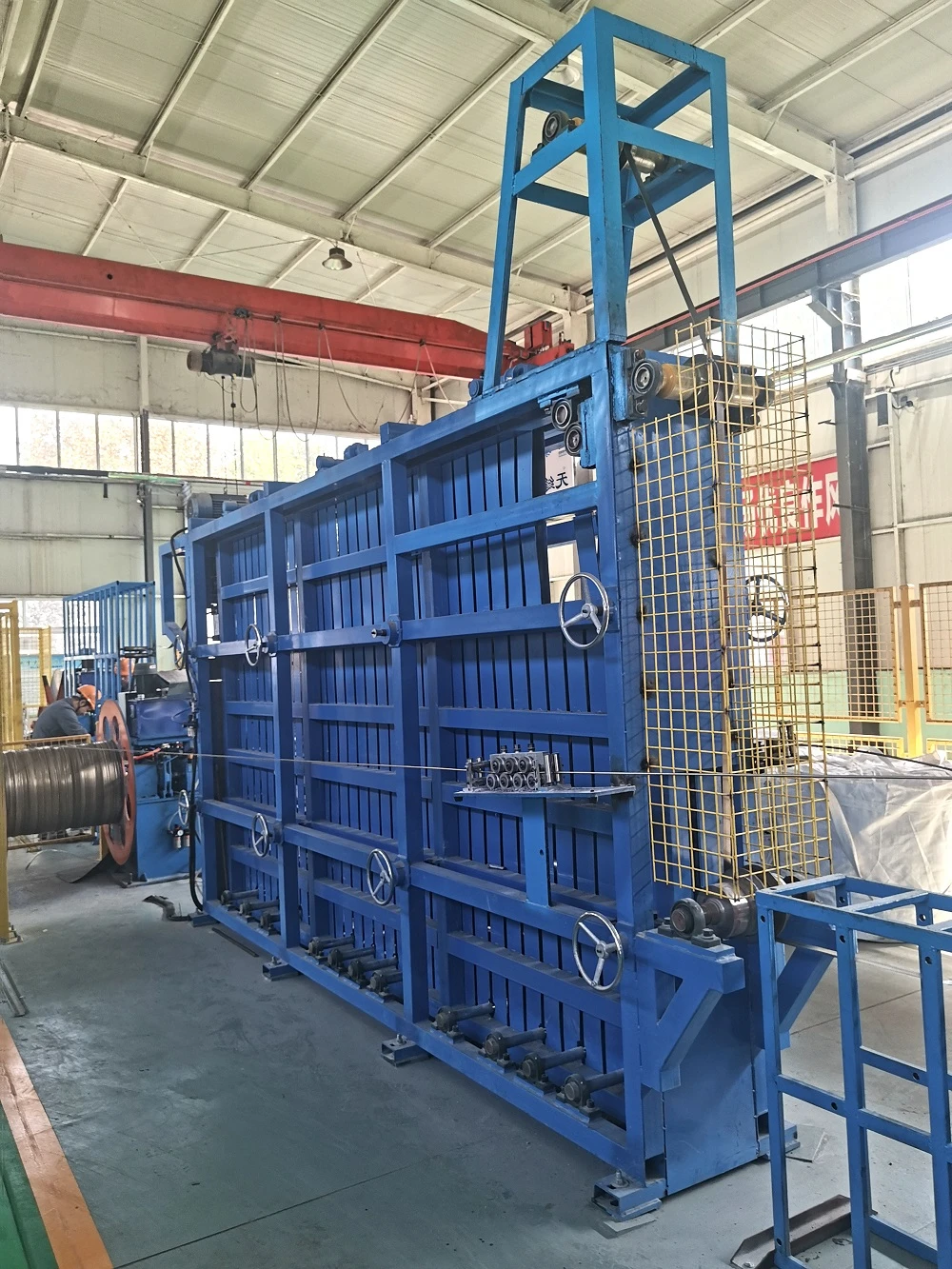

3 The picture of solid calcium cored wire production line

4.The video of solid calcium cored wire

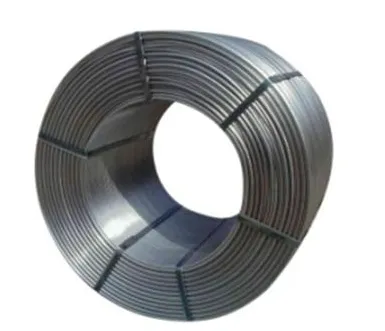

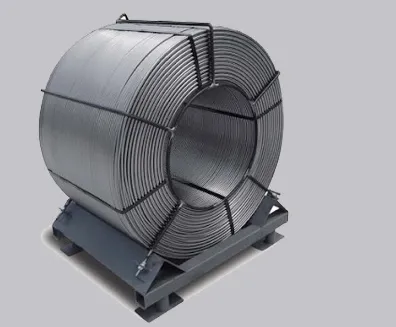

5.The specification of solid calcium core wire:

1)The steel trip thickness :1.0---1.5mm
2)The solid cored wire diameter :9.5mm,10.5mm ( dimension accuracy:±0.5mm)
3)The filler : Calcium wire
4)Seal type :HF welding(seamless type)
5) Application:steel making .

6.Application of
3)Composite cored wire and solid calcium cored wire are mainly used in steel making and metallurgy.

their function in steel making and Metallurgy is as below:

•Refining the molten steel: Deep deoxidation and desulfurization to remove harmful inclusions.
•Optimizing the microstructure: Modifying inclusion morphology to enhance the comprehensive mechanical properties of the steel.
•Ensuring smooth production: Solving the problem of tundish nozzle clogging during continuous casting to guarantee production continuity.
•Improving cost-effectiveness: Compared with traditional methods, it offers higher elemental yield, more stable treatment performance, and lower overall costs.
This technology is an indispensable key process for producing high-quality steel grades, such as pipeline steel, automotive steel, and other critical applications.

Cored wire production line
