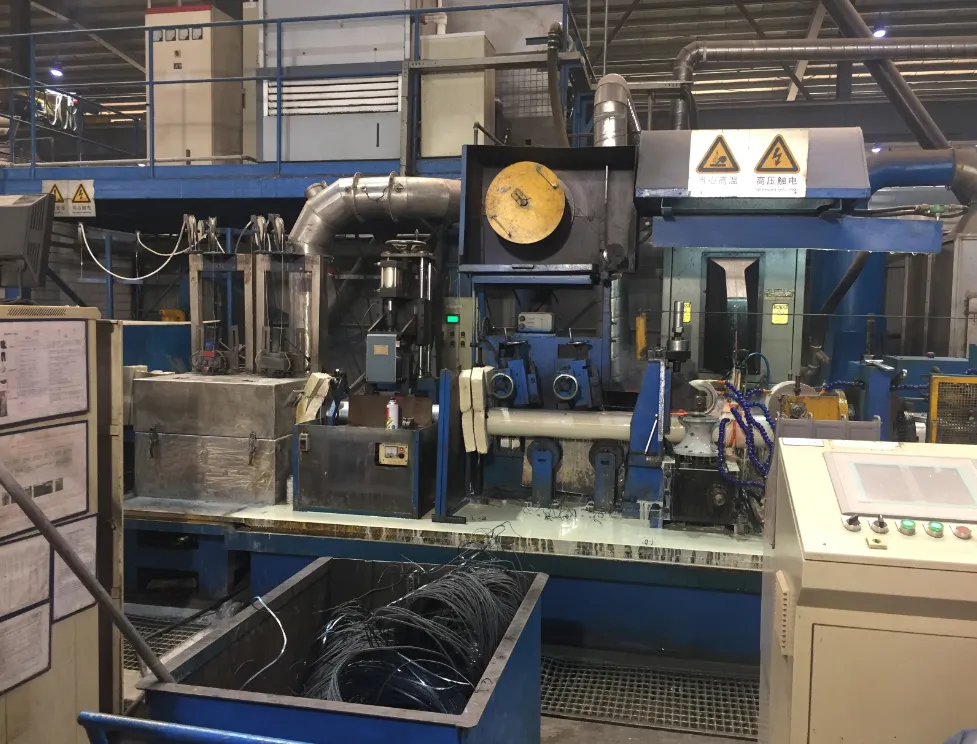

The welded tube mill for finned tube of air-cooled condenser

Finned tube specification

1)Strip Materials aluminium coated coil, Aluminized strip

2)Strip Width: 460mm~461mm

3)Strip Thickness: 1.25mm;1.35mm;1.50mm

4)Coil I.D. Φ508~Φ610mm

5)Coil O.D. 1000~Φ1800mm

6)Max.Coil Weight: 10 Ton

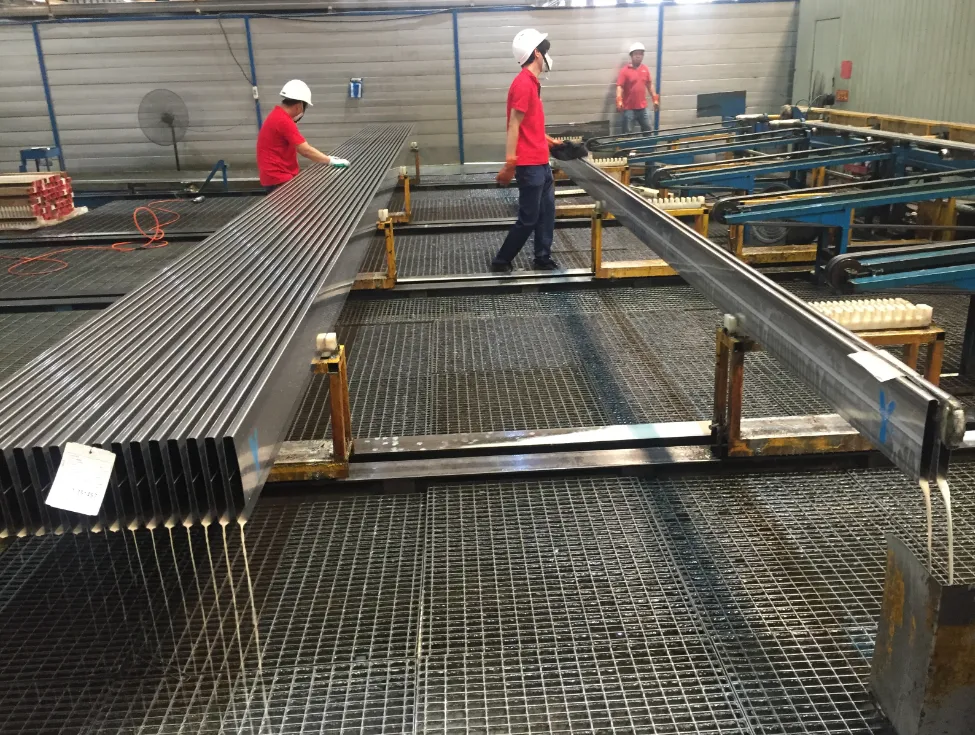

7)Finned tube: 209±0.8mmx19±0.25mm

tube Length 6~14m

9)Lenth Accuracy ±1.5mm

10)Line Speed 0~30 m/min

11)Productio.n capacity:Approx.45T/shift (8hours )

The specification of Welded tube mill

1:coil loading car

2.hydraulic single mandrel uncoiler with support arm

3.Horizontal spiral accumulator

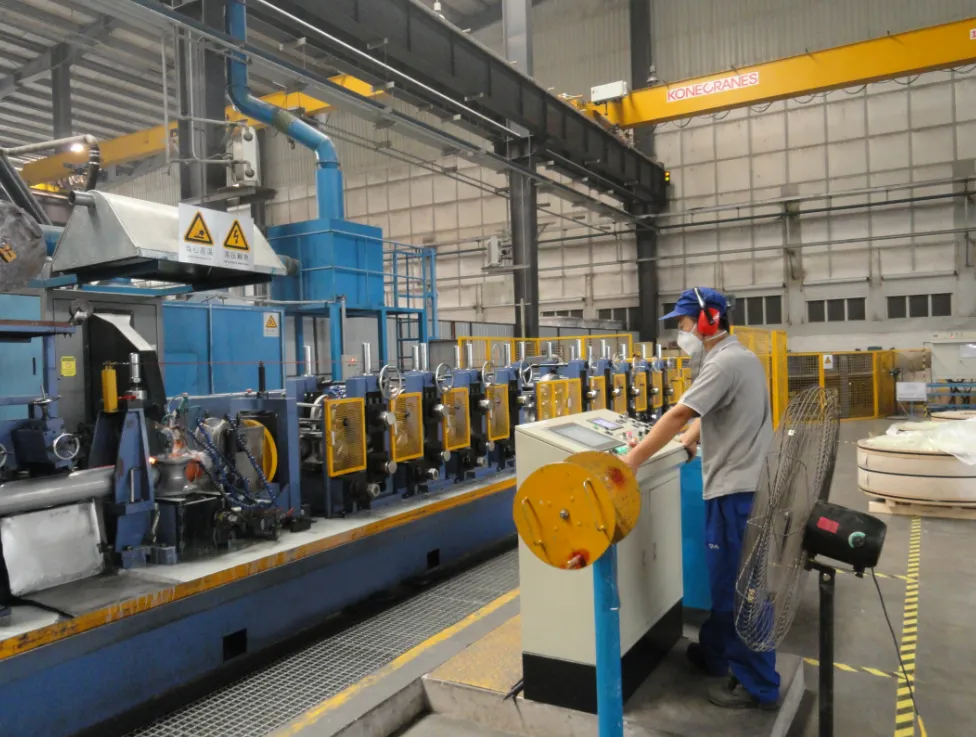

4.Forming and welding section and sizing machine with flushing device

Forming machine :10 horizontal stand +10 vertical stand ,

Sizing machine :9 horizontal stand +10 vertical stand +flushing device +2-Turkey head

5.Spray tower +Industrial dust collector

6.150KW HF welder

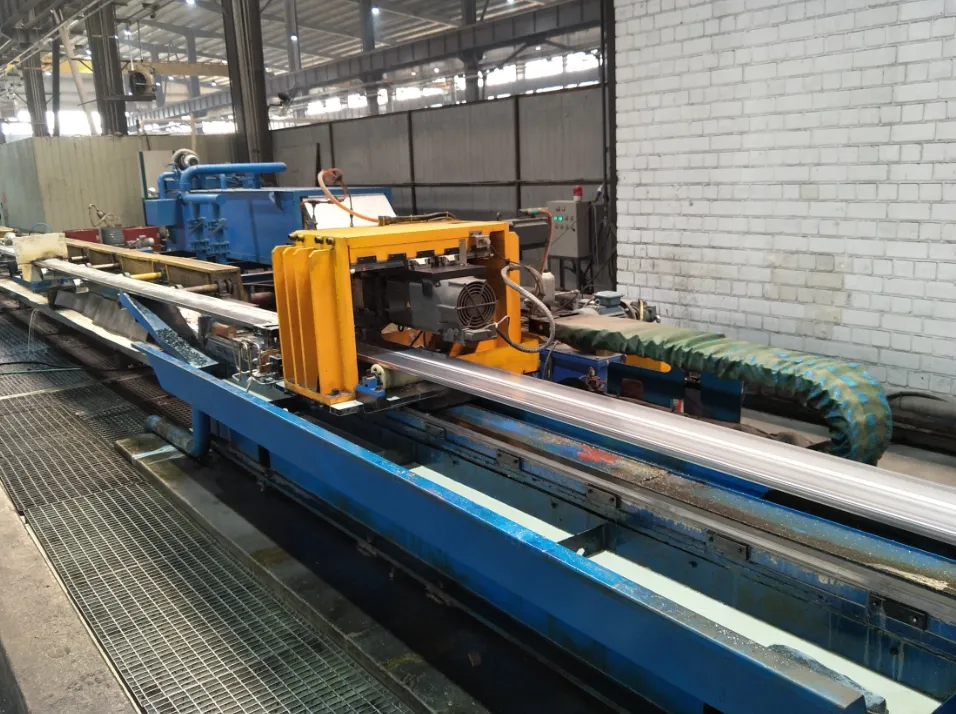

7Cold cutting saw

8 Run out table

9.stacker + manual strapping machine

10Paper tape filter machine

The applicationof air cooled condenser
The advantage
A power plant site no longer has to be located close to a water source if air- cooled condenser is selected Instead, the location can be optimized with regard to transmission lines and either gas distribution lines (for combined-cycle plants) or rail lines (for coal-fired plants). solid fuel plants
